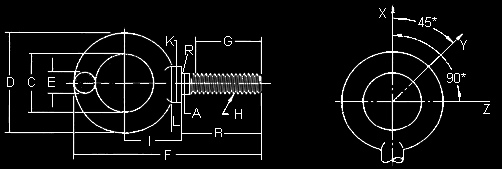

EYE BOLTS
Nominal Size |
A | B | C | D | E | F | G | H |
Wx |
Wy | Wz |
|
Shank Dia |
Shank Length |
Eye ID |
Nominal Eye OD |
Eye Sect Dia |
Overall Length |
Min Length Full Thread |
Thread Size UNC-2A |
Safe Working Load, lb at 0 Deg1 |
Safe Working Load, lb at 45 Deg1 |
Safe Working |
||
1/4* | 0.25 | 0.25 0.28 |
1.00 1.06 |
0.69 0.81 |
1.19 | 0.19 0.25 |
2.06 2.38 |
0.75 | 1/4-20 or .250-20 | 400 | 80 |
60 |
5/16* | 0.31 | 0.31 0.34 |
1.12 1.19 |
0.81 0.94 |
1.44 | 0.25 0.31 |
2.44 2.75 |
0.81 | 5/16-18 or .3125-18 | 800 | 160 | 120 |
3/8* | 0.38 | 0.38 0.41 |
1.25 1.38 |
0.94 1.06 |
1.69 | 0.31 0.38 |
2.81 3.19 |
0.88 | 3/8-16 or .375-16 | 1400 | 280 |
210 |
7/16 | 0.44 | 0.44 0.47 |
1.38 1.50 |
1.00 1.12 |
1.81 | 0.34 0.41 |
3.06 3.44 |
1.00 | 7/16-14 or .4375-14 | 2000 | 400 | 300 |
1/2* | 0.50 | 0.50 0.53 |
1.50 1.62 |
1.12 1.25 |
2.12 | 0.44 0.50 |
3.50 3.88 |
1.12 | 1/2-13 or .500-13 | 2600 | 520 | 390 |
9/16 | 0.56 | 0.56 0.59 |
1.62 1.75 |
1.19 1.31 |
2.25 | 0.47 0.53 |
3.75 4.12 |
1.25 | 9/16-12 or .5625-12 | 3000 | 600 | 450 |
5/8* | 0.62 | 0.62 0.66 |
1.75 1.88 |
1.31 1.44 |
2.56 | 0.56 0.62 |
4.19 4.56 |
1.38 | 5/8-11 or .625-11 | 4000 | 800 | 600 |
3/4* | 0.75 | 0.75 0.78 |
2.00 2.12 |
1.44 1.56 |
2.81 | 0.62 0.69 |
4.69 5.06 |
1.62 | 3/4-10 or .750-10 | 6000 | 1200 | 900 |
7/8* | 0.88 | 0.88 0.91 |
2.25 2.38 |
1.56 1.69 |
3.19 | 0.75 0.81 |
5.31 5.69 |
1.81 | 7/8-9 or .875-9 | 6600 | 1300 | 1000 |
1* | 1.00 | 1.00 1.06 |
2.50 2.62 |
1.69 1.81 |
3.56 | 0.88 0.94 |
5.94 6.31 |
2.06 | 1-8 or 1.000-8 | 8000 | 1600 | 1200 |
1-1/8 | 1.12 | 1.12 1.19 |
2.75 2.88 |
1.94 2.06 |
4.06 | 1.00 1.06 |
6.69 7.06 |
2.31 | 1-1/8-7 or 1.125-7 | 10000 | 2000 | 1500 |
1-1/4* | 1.25 | 1.25 1.34 |
3.00 3.12 |
2.12 2.25 |
4.44 | 1.09 1.16 |
7.31 7.69 |
2.50 | 1-1/4-7 or 1.250-7 | 15000 | 3000 | 2250 |
1-1/2* | 1.50 | 1.50 1.59 |
3.50 3.62 |
2.44 2.56 |
5.19 | 1.31 1.38 |
8.56 8.94 |
3.00 | 1-1/2-6 or 1.500-6 | 18000 | 3600 | 2700 |
1-3/4 | 1.75 | 1.75 1.84 |
3.75 3.88 |
2.75 3.00 |
6.00 | 1.50 1.62 |
9.50 10.12 |
3.19 | 1-3/4-5 or 1.750-5 | 22000 | 4400 | 3300 |
2* | 2.00 | 2.00 2.09 |
4.00 4.25 |
3.06 3.44 |
6.88 | 1.75 1.88 |
10.56 11.44 |
3.38 | 2-4-1/2- or 2.000-4.50 | 26000 | 5200 | 3900 |
2-1/2* | 2.50 | 2.50 2.62 |
5.00 5.25 |
3.81 4.19 |
8.50 | 2.19 2.31 |
13.19 14.06 |
4.25 | 2-1/2-4 or 2.500-4 | 32000 | 6400 | 4800 |
NOTES: *Preferred
1. These safe working loads are based on the following percentages of minimum proof loads
shown in ASTM
A 489; 0 Deg - 66.6 per cent, 45 Deg - 13.3 per cent, 90 Deg - 10.0 per cent
Nominal |
A | B | C | D | E | F | G | H |
Wx | Wy | Wz | |
Shank Dia |
Shank Length |
Eye ID |
Nominal Eye OD |
Eye Sect Dia |
Overall Length |
Min Length Full Thread |
Thread |
Safe Working Load, lb at 0 Deg1 |
Safe Working Load, lb at 45 Deg1 |
Safe Working Load, lb at 90 Deg1 |
||
1/4* | 0.25 | 0.25 0.28 |
1.00 1.06 |
0.69 0.81 |
1.19 | 0.19 0.25 |
2.06 2.38 |
0.75 | 1/4-20 or .250-20 | 400 | 80 | 60 |
5/16* | 0.31 | 0.31 0.34 |
1.12 1.19 |
0.81 0.94 |
1.44 | 0.25 0.31 |
2.44 2.75 |
0.81 | 5/16-18 or .3125-18 | 800 | 160 | 120 |
3/8* | 0.38 | 0.38 0.41 |
1.25 1.38 |
0.94 1.06 |
1.69 | 0.31 0.38 |
2.81 3.19 |
0.88 | 3/8-16 or .375-16 | 1400 | 280 | 210 |
7/16 | 0.44 | 0.44 0.47 |
1.38 1.50 |
1.00 1.12 |
1.81 | 0.34 0.41 |
3.06 3.44 |
1.00 | 7/16-14 or .4375-14 | 2000 | 400 | 300 |
1/2* | 0.50 | 0.50 0.53 |
1.50 1.62 |
1.12 1.25 |
2.12 | 0.44 0.50 |
3.50 3.88 |
1.12 | 1/2-13 or .500-13 | 2600 | 520 | 390 |
9/16 | 0.56 | 0.56 0.59 |
1.62 1.75 |
1.19 1.31 |
2.25 | 0.47 0.53 |
3.75 4.12 |
1.25 | 9/16-12 or .5625-12 | 3000 | 600 | 450 |
5/8* | 0.62 | 0.62 0.66 |
1.75 1.88 |
1.31 1.44 |
2.56 | 0.56 0.62 |
4.19 4.56 |
1.38 | 5/8-11 or .625-11 | 4000 | 800 | 600 |
3/4* | 0.75 | 0.75 0.78 |
2.00 2.12 |
1.44 1.56 |
2.81 | 0.62 0.69 |
4.69 5.06 |
1.62 | 3/4-10 or .750-10 | 6000 | 1200 | 900 |
7/8* | 0.88 | 0.88 0.91 |
2.25 2.38 |
1.56 1.69 |
3.19 | 0.75 0.81 |
5.31 5.69 |
1.81 | 7/8-9 or .875-9 | 6600 | 1300 | 1000 |
1* | 1.00 | 1.00 1.06 |
2.50 2.62 |
1.69 1.81 |
3.56 | 0.88 0.94 |
5.94 6.31 |
2.06 | 1-8 or 1.000-8 | 8000 | 1600 | 1200 |
1-1/8 | 1.12 | 1.12 1.19 |
2.75 2.88 |
1.94 2.06 |
4.06 | 1.00 1.06 |
6.69 7.06 |
2.31 | 1-1/8-7 or 1.125-7 | 10000 | 2000 | 1500 |
1-1/4* | 1.25 | 1.25 1.34 |
3.00 3.12 |
2.12 2.25 |
4.44 | 1.09 1.16 |
7.31 7.69 |
2.50 | 1-1/4-7 or 1.250-7 | 15000 | 3000 | 2250 |
1-1/2* | 1.50 | 1.50 1.59 |
3.50 3.62 |
2.44 2.56 |
5.19 | 1.31 1.38 |
8.56 8.94 |
3.00 | 1-1/2-6 or 1.500-6 | 18000 | 3600 | 2700 |
1-3/4 | 1.75 | 1.75 1.84 |
3.75 3.88 |
2.75 3.00 |
6.00 | 1.50 1.62 |
9.50 10.12 |
3.19 | 1-3/4-5 or 1.750-5 | 22000 | 4400 | 3300 |
2* | 2.00 | 2.00 2.09 |
4.00 4.25 |
3.06 3.44 |
6.88 | 1.75 1.88 |
10.56 11.44 |
3.38 | 2-4-1/2- or 2.000-4.50 | 26000 | 5200 | 3900 |
NOTES: 1. *Preferred.
Applies if shoulder is properly seated, otherwise safe working load of Type 1
applies. These safe working loads are based on the following percentages of minimum proof
loads shown in ASTM A 489; 0 Deg - 66.6 per cent, 45 Deg - 16.7 per cent, 90 Deg - 13.3
per cent.
THE CROSBY GROUP
REGULAR NUT EYE BOLTS
G-291
Recommended for
straight line pull.
All Bolts Hot Dip galvanized after threading (UNC).
Furnished with standard Hot Dip galvanized hex nuts.
Forged Steel Quenched and Tempered.
Fatigue rated at 1-1/2 times the Working Load Limit at 20,000 cycles.
Shank Dia. & Length (in.) |
G-291 Stock No. Galv. |
Working Load Limit * (lbs.) |
Weight Per 100 (lbs.) |
Dimensions. (in.) | |||||||
A | B | C | D | E | F | G | H | ||||
1/4 x 2 | 1043230 | 650 | 8.20 | .25 | .50 | 1.00 | .25 | 1.50 | 2.00 | 3.06 | .56 |
1/4 x 4 | 1043258 | 650 | 11.70 | .25 | .50 | 1.00 | .25 | 2.50 | 4.00 | 5.06 | .56 |
5/16x 2-1/4 | 1043276 | 1200 | 13.30 | .31 | .62 | 1.25 | .31 | 1.50 | 2.25 | 3.56 | .69 |
5/16x 4-1/4 | 1043294 | 1200 | 25.00 | .31 | .62 | 1.25 | .31 | 2.50 | 4.25 | 5.56 | .69 |
3/8 x 2-1/2 | 1043310 | 1550 | 23.30 | .38 | .75 | 1.50 | .38 | 1.50 | 2.50 | 4.12 | .88 |
3/8 x 4-1/2 | 1043338 | 1550 | 29.50 | .38 | .75 | 1.50 | .38 | 2.50 | 4.50 | 6.12 | .88 |
3/8 x 6 | 1043356 | 155 | 35.20 | .38 | .75 | 1.50 | .38 | 2.50 | 6.00 | 7.62 | .88 |
1/2 x 3-1/4 | 1043374 | 2600 | 50.30 | .50 | 1.00 | 2.00 | .50 | 1.50 | 3.25 | 5.38 | 1.12 |
1/2 x 6 | 1043392 | 2600 | 66.10 | .50 | 1.00 | 2.00 | .50 | 3.00 | 6.00 | 8.12 | 1.12 |
1/2 x 8 | 1043418 | 2600 | 82.00 | .50 | 1.00 | 2.00 | .50 | 3.00 | 8.00 | 10.12 | 1.12 |
1/2 x 10 | 1043436 | 2600 | 88.00 | .50 | 1.00 | 2.00 | .50 | 3.00 | 10.00 | 12.12 | 1.12 |
1/2 x 12 | 1043454 | 2600 | 114.20 | .50 | 1.00 | 2.00 | .50 | 3.00 | 12.00 | 14.12 | 1.12 |
5/8 x 4 | 1043472 | 5200 | 103.10 | .62 | 1.25 | 2.50 | .62 | 2.00 | 4.00 | 6.69 | 1.44 |
5/8 x 6 | 1043490 | 5200 | 118.20 | .62 | 1.25 | 2.50 | .62 | 3.00 | 6.00 | 8.69 | 1.44 |
5/8 x 8 | 1043515 | 5200 | 135.10 | .62 | 1.25 | 2.50 | .62 | 3.00 | 8.00 | 10.69 | 1.44 |
5/8 x 10 | 1043533 | 5200 | 153.60 | .62 | 1.25 | 2.50 | .62 | 3.00 | 10.00 | 12.69 | 1.44 |
5/8 x 12 | 1043551 | 5200 | 167.10 | .62 | 1.25 | 2.50 | .62 | 4.00 | 12.00 | 14.69 | 1.44 |
3/4 x 4-1/2 | 1043579 | 7200 | 168.60 | .75 | 1.50 | 3.00 | .75 | 2.00 | 4.50 | 7.69 | 1.69 |
3/4 x 6 | 1043597 | 7200 | 184.50 | .75 | 1.50 | 3.00 | .75 | 3.00 | 6.00 | 9.19 | 1.69 |
3/4 x 8 | 1043613 | 7200 | 207.90 | .75 | 1.50 | 3.00 | .75 | 3.00 | 8.00 | 11.19 | 1.69 |
3/4 x 10 | 1043631 | 7200 | 235.00 | .75 | 1.50 | 3.00 | .75 | 3.00 | 10.00 | 13.19 | 1.69 |
3/4 x 12 | 1043659 | 7200 | 257.50 | .75 | 1.50 | 3.00 | .75 | 4.00 | 12.00 | 15.19 | 1.69 |
3/4 x 15 | 1043677 | 7200 | 298.00 | .75 | 1.50 | 3.00 | .75 | 5.00 | 15.00 | 18.19 | 1.69 |
*Ultimate Load is 5 times
the Working Load Limit.
Working Load Limit shown is for in-line pull.
shoulder
THE CROSBY GROUP
SHOULDER NUT EYE BOLTS
G-277
Forged Steel.
All Bolts Hot Dip galvanized after threading (UNC).
Furnished with standard Hot Dip galvanized, heavy hex nuts.
Fatigue rated at 1-1/2 times the Working Load Limit at 20,000 cycles
Shank Diameter & Length (in.) |
G-277 Stock No. Galv. |
Working Load Limit * (lbs.) |
Weight Per 100 (lbs.) |
Dimensions. (in.) | ||||||||
A | B | C | D | E | F | G | H | J | ||||
1/4 x 2 | 1045014 | 650 | 6.60 | .25 | .50 | .88 | .19 | 1.50 | 2.00 | 2.94 | .50 | .47 |
1/4 x 4 | 1045032 | 650 | 9.10 | .25 | .50 | .88 | .19 | 2.50 | 4.00 | 4.94 | .50 | .47 |
5/16x 2-1/4 | 1045050 | 1200 | 12.50 | .31 | .62 | 1.12 | .25 | 1.50 | 2.25 | 3.50 | .69 | .56 |
5/16x 4-1/4 | 1045078 | 1200 | 18.80 | .31 | .62 | 1.12 | .25 | 2.50 | 4.25 | 5.50 | .69 | .56 |
3/8 x 2-1/2 | 1045096 | 1550 | 21.40 | .38 | .75 | 1.38 | .31 | 1.50 | 2.50 | 3.97 | .78 | .66 |
3/8 x 4-1/2 | 1045112 | 1550 | 25.30 | .38 | .75 | 1.38 | .31 | 2.50 | 4.50 | 5.97 | .78 | .66 |
1/2 x 3-1/2 | 1045130 | 2600 | 42.60 | .50 | 1.00 | 1.75 | .38 | 1.50 | 3.25 | 5.12 | 1.00 | .91 |
1/2 x 6 | 1045158 | 2600 | 56.80 | .50 | 1.00 | 1.75 | .38 | 3.00 | 6.00 | 7.88 | 1.00 | .91 |
5/8 x 4 | 1045176 | 5200 | 68.60 | .62 | 1.25 | 2.25 | .50 | 2.00 | 4.00 | 6.44 | 1.31 | 1.12 |
5/8 x 6 | 1045194 | 5200 | 102.40 | .62 | 1.25 | 2.25 | .50 | 3.00 | 6.00 | 8.44 | 1.31 | 1.12 |
3/4 x 4-1/2 | 1045210 | 7200 | 144.50 | .75 | 1.50 | 2.75 | .62 | 2.00 | 4.50 | 7.44 | 1.56 | 1.38 |
3/4 x 6 | 1045238 | 7200 | 167.50 | .75 | 1.50 | 2.75 | .62 | 3.00 | 6.00 | 8.94 | 1.56 | 1.38 |
7/8 x 5 | 1045256 | 10600 | 225.00 | .88 | 1.75 | 3.25 | .75 | 2.50 | 5.00 | 8.46 | 1.84 | 1.56 |
1 x 6 | 1045292 | 13300 | 366.30 | 1.00 | 2.00 | 3.75 | .88 | 3.00 | 6.00 | 9.97 | 2.09 | 1.81 |
1 x 9 | 1045318 | 13300 | 422.50 | 1.00 | 2.00 | 3.75 | .88 | 4.00 | 9.00 | 12.97 | 2.09 | 1.81 |
1-1/4 x 8 | 1045336 | 21000 | 650.00 | 1.25 | 2.50 | 4.50 | 1.00 | 4.00 | 8.00 | 12.72 | 2.47 | 2.28 |
1-1/4 x 12 | 1045354 | 21000 | 795.00 | 1.25 | 2.50 | 4.50 | 1.00 | 4.00 | 12.00 | 16.72 | 2.47 | 2.28 |
1-1/2 x 15 | 1045372 | 24000 | 1425.00 | 1.50 | 3.00 | 5.50 | 1.25 | 6.00 | 15.00 | 20.75 | 3.00 | 2.75 |
*Ultimate Load is 5 times
the Working Load Limit.
Working Load Limit shown is for in-line pull
machinery
THE CROSBY GROUP
SHOULDER TYPE MACHINERY EYE BOLTS
S-279
Fatigue rated
at 1-1/2 times the Working Load Limit at 20,000 cycles.
Working Load Limits shown are for In-line pull.
Forged Steel Quenched &
Tempered.
Recommended for
straight linie pull.
All Bolts threaded UNC
Size | Stock No. | Working Load Limit * (lbs.) |
Weight per 100 (lbs.) |
Dimensions. (in.) | |||||||
A | B | C | D | E | F | G | H | ||||
1/4 x 1 | 9900182 | 650 | 5.10 | .25 | 1.00 | .88 | .50 | 1.94 | .19 | .47 | .50 |
5/16x1-1/8 | 9900191 | 1200 | 6.20 | .31 | 1.13 | 1.12 | .62 | 2.38 | .25 | .56 | .69 |
3/8 x 1-1/4 | 9900208 | 1550 | 12.50 | .38 | 1.25 | 1.38 | .75 | 2.72 | .31 | .66 | .78 |
1/2 x 1-1/2 | 9900217 | 2600 | 25.00 | .50 | 1.50 | 1.75 | 1.00 | 3.38 | .38 | .91 | 1.00 |
5/8 x 1-3/4 | 9900226 | 5200 | 50.00 | .63 | 1.75 | 2.25 | 1.25 | 4.19 | .50 | 1.12 | 1.31 |
3/4 x 2 | 9900235 | 7200 | 87.50 | .75 | 2.00 | 2.75 | 1.50 | 4.94 | .62 | 1.38 | 1.56 |
7/8 x 2-1/4 | 9900244 | 10600 | 157.20 | .88 | 2.25 | 3.25 | 1.75 | 5.72 | .75 | 1.56 | 1.84 |
1 x 2-1/2 | 9900253 | 13300 | 218.00 | 1.00 | 2.50 | 3.75 | 2.00 | 6.47 | .88 | 1.81 | 2.09 |
1-1/4 x 3 | 9900262 | 21000 | 380.00 | 1.25 | 3.00 | 4.50 | 2.50 | 7.72 | 1.00 | 2.28 | 2.47 |
1-1/2x 3-1/2 | 9900271 | 24000 | 700.00 | 1.50 | 3.50 | 5.50 | 3.00 | 9.25 | 1.25 | 2.75 | 3.00 |
* Ultimate Load is 5 times the Working Load Limit
Shoulder Nut Eye Bolt ---
Installation for Angular Loading
The threaded shank must protrude through the
load sufficiently to allow full engagement of the nut.
Thickness of spacers must exceed this distance between the bottom of the load and the last
thread of the eye bolt.
If the eye bolt protrudes so far through the load that the nut cannot be tightened
securely against the load, use properly sized washers to take up the excess space BETWEEN
THE NUT AND THE LOAD.
Place washers or spacers between nut and load so that when the nut is tightened securely,
the shoulder is secured flush against the load surface
Direction of Pull | Adjusted Working Load |
45 degrees | 30% of rated working load |
90 degrees | 25% of rated working load |
In accordance with good rigging and
maintenance practices
All rigging equipment and hardware should be inspected periodically
for wear, abuse and general adequacy.
Visitors Notes Links Pictures
If you have something that this page is missing or have some good ideas how to improve this page feel free to contact me at info@rigging.net
Page maintained by Peter . Copyright (c) . Created: 8/7/96 Updated: 11/17/03
